Ford Transit MkIII (1985-1991) - Members

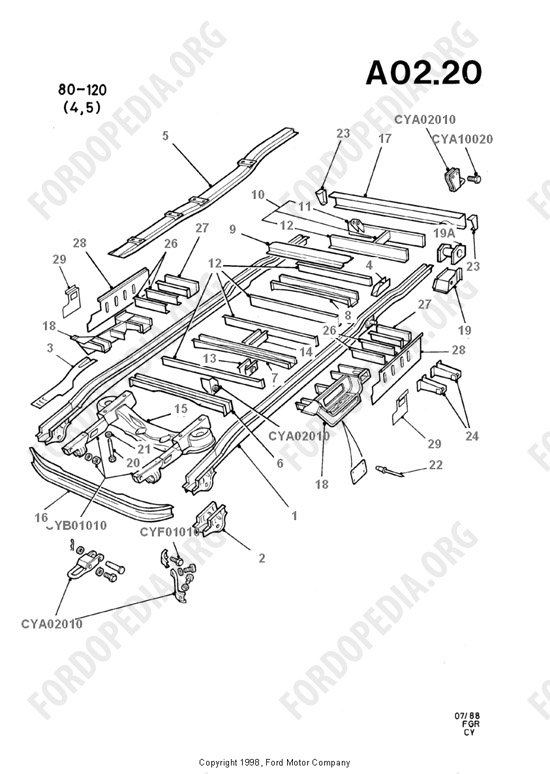

Ford Transit MkIII (1985-1991) – Members
# Part name   Qty Prod Prod date FINIS Part No.
(0) Nut - expansion
     - 6096432
1 Member assy - floor side
EXCEPT DOUBLE CAB
 RH 1 11/85 - 10/88 1642954 P87VB H10110 AA
DOUBLE CAB (3/4 DOOR)
 RH 1 D 9/86 - 10/88 1642955 P87VB H10110 BA
DOUBLE CAB (3/4 DOOR)
 RH 1 D 9/86 - 10/88 1642955 P87VB H10110 BA
EXCEPT DOUBLE CAB
 LH 1 D 11/85 - 10/88 1642957 P87VB H10111 AA
EXCEPT DOUBLE CAB
 LH 1 D 11/85 - 10/88 1642957 P87VB H10111 AA
DOUBLE CAB (3/4 DOOR)
 LH 1 9/86 - 10/88 1642958 P87VB H10111 BA
EXCEPT DOUBLE CAB
 RH 1 9/90 - 8/91 1663787 TP88VBH10110AA
EXCEPT DOUBLE CAB
 LH 1 9/90 - 8/91 1663788 TP88VBH10111AA
DOUBLE CAB (3/4 DOOR)
     - 1663789
DOUBLE CAB (3/4 DOOR)
     - 1663790
2 Bracket - front spring - front
   2 11/85 - 8/91 1635418 P86VB 5K313 AA
3 Plate assy - floor side member
 LH 1 11/85 - 8/91 6184780 88VB V101K51 AB
〃
 RH 1 11/85 - 8/91 6189615 88VB V101K50 AA
4 Reinforcement - axle bump stop
   1 11/85 - 8/91 1635014 P86VB H10269 AA
5 Member - floor side - upper
   2 11/85 - 8/91 1653517 86VB H104K06 AE
6 Member - floor cross - inner
NO.1
   1 11/85 - 8/91 6136648 86VB V107K01 AA
7
NO.2
   1 11/85 - 8/91 6198017 88VB V107K08 AF
8
RHDNO.3
   1 GB 11/85 - 8/91 1653534 P88VB V107K50 BA
LHDNO.3
   1 10/88 - 8/91 1653536 P88VB V107K50 DA
9 Member - floor cross - inner/upper
     - 6551451
10 Member assy - floor cross - rear
   1 11/85 - 8/91 1653041 P87VB 10716 AB
11 〃
   1 11/85 - 8/91 1635509 P86VB H107K00 AA
12 Member - floor cross - inner
   1 11/85 - 8/91 1655523 P88VB V110K12 AA
13 Member - parking brake mounting
   1 11/85 - 8/91 6525758 92VB V111K99 AA
14 Member - drive shaft coupling brg
   1 11/85 - 8/91 6151811 86VB 4K237 AC
15 Cross member assy - front
   1 11/85 - 8/91 6149187 86VB 5019 AC
16 〃
   1 11/85 - 8/91 1635624 P86VB V110L76 AA
17 Member assy - floor cross - rear
   1 11/85 - 8/91 6171678 86VB H107K57 BD
18 Step assy
 RH 1 11/85 - 8/91 1653537 P88VB 16450 AA
〃
 LH 1 11/85 - 8/91 1653541 P88VB 16451 AA
19 Bracket assy - rear spring
 RH 1 11/85 - 8/91 1646062 P87VB 5776 AA
〃
 LH 1 11/85 - 8/91 1646063 P87VB 5776 BA
19A 〃
   4 11/85 - 8/91 6167815 87VB 5665 AA
20 Bolt - special
M12 × 133 mm
   4 11/85 - 8/91 6169649 E801204 S100
21 Washer - flat
   4 11/85 - 8/91 6150484 E830300 S71M
22 〃
   4 D/GB 11/85 - 8/91 1642846 E647791 S210
23 End cap
 RH 1 11/85 - 8/91 1631434 86VB 10800 AAFA
〃
 LH 1 11/85 - 8/91 1631436
24 Bracket - fuel tank
   2 11/85 - 8/91 6160390 86VB 9A040 AB
26 Member - floor cross - outer
DOUBLE CAB (3/4 DOOR)
   4 9/86 - 8/91 1641687 P86VB V107K25 AA
27
DOUBLE CAB (3/4 DOOR)
   2 9/86 - 8/91 6157342 87VB D107K10 BA
28 Reinforcement - floor pan side ext.
DOUBLE CAB (3/4 DOOR)
 RH 1 9/86 - 8/91 6170927 87VB D200K84 AB
DOUBLE CAB (3/4 DOOR)
 LH 1 9/86 - 8/91 6170928 87VB D200K85 AB
29
EXCEPT DOUBLE CAB
 RH 1 11/85 - 8/91 6143404 86VB H200K84 AA
EXCEPT DOUBLE CAB
 LH 1 11/85 - 8/91 6143405 86VB H200K85 AA
