| 1 |

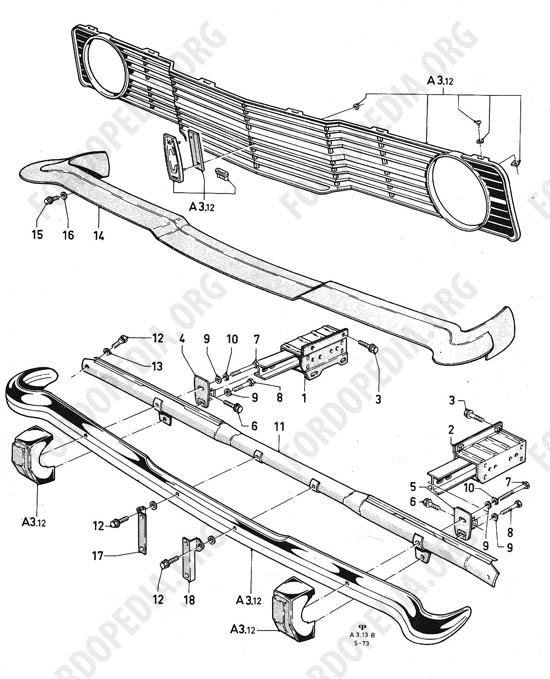

Isolator assy - (bumper)
|
RH |
1 |
GB
|
7/72 -
|
1526355
|
73BB 17C882 AA
|
| 2 |
〃
|
LH |
1 |
GB
|
7/72 -
|
1526356
|
73BB 17C883 AA
|
| 3 |
Securing isolator - screw and washer assy
|
|
8 |
GB
|
7/72 -
|
1467039
|
E602549 S72
|
| 4 |
Plate assy - (front bumper isolator attachment)
|
RH |
1 |
GB
|
7/72 -
|
1524521
|
73BB 17K855 AA
|
| 5 |
〃
|
LH |
1 |
GB
|
7/72 -
|
1524680
|
73BB 17K856 AA
|
| 6 |
Securing plate - bolt and lockwasher assy - plate to isolator
|
|
4 |
GB
|
7/72 -
|
1467039
|
E602549 S72
|
| 7 |
Securing plate - bolt and lockwasher assy - plate to overrider - upper
|
|
2 |
GB
|
7/72 -
|
1496376
|
E600218 S72
|
| 8 |
Securing plate - bolt and lockwasher assy - plate to overrider - lower
|
|
2 |
GB
|
7/72 -
|
1475462
|
E602551 S82
|
| 9 |
Securing plate - washer - (flat)
|
|
8 |
GB
|
7/72 -
|
1444685
|
E630027 S71
|
| 10 |
Securing plate - lockwasher
|
|
6 |
GB
|
7/72 -
|
1444686
|
E630173 S71
|
| 11 |
Reinforcement assy - (bumper)
|
|
1 |
GB
|
7/72 -
|
1544631
|
73BB 17A919 AA
|
| 12 |
Securing reinforcement to bumper - bolt and lockwasher assy
|
|
4 |
GB
|
7/72 -
|
1467039
|
E602549 S72
|
| 13 |
Securing reinforcement to bumper - washer - (flat)
|
|
6 |
GB
|
7/72 -
|
1444685
|
E630027 S71
|
| 14 |
Shield - (bumper mounting)
|
|
1 |
GB
|
7/72 -
|
1526314
|
73BB 17779 AA
|
| 15 |
Securing shield bumper mounting - screw and tooth lockwasher assy
|
|
8 |
GB
|
7/72 -
|
1512708
|
E603570 S72
|
| 16 |
Securing shield bumper mounting - washer - (flat)
|
|
8 |
GB
|
7/72 -
|
1459510
|
E630024 S71
|
| 17 |
Bracket - (licence plate)
|
RH |
1 |
GB
|
7/72 -
|
|
|
| 18 |
〃
|
LH |
1 |
GB
|
7/72 -
|
|
|
