Ford Sierra MkI (1982-1986) - Gear Change-Automatic Transmission

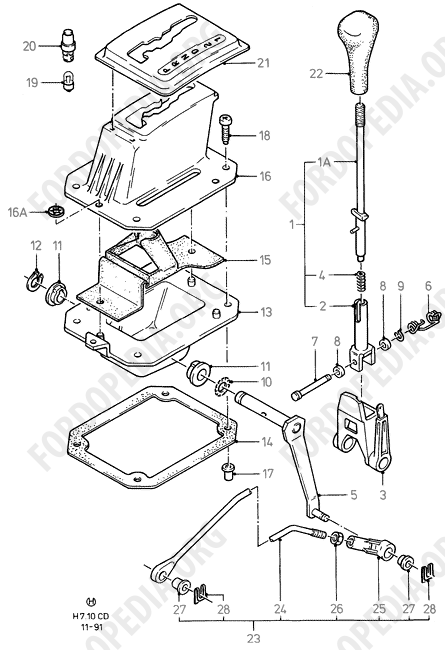

Ford Sierra MkI (1982-1986) – Gear Change-Automatic Transmission
# Part name   Qty Prod Prod date FINIS Part No.
1 Lever - selector
A4LD
   1 8/82 - 12/86 6178518
C3
   1 8/82 - 12/86 6169796 86DT 7E027 AA
1A
UPPER PARTA4LD
   1 D 8/82 - 7/86 6141865 85GT 7202 BB
UPPER PARTA4LD
   1 GB 8/82 - 11/85 6141865 85GT 7202 BB
UPPER PARTA4LD
   1 GB 11/85 - 10/86 6157624 85GT 7202 BC
2
LOWER SECTION
   1 D 8/82 - 7/86 6132343 83DT 7210 AB
LOWER SECTION
   1 GB 8/82 - 10/86 6132343 83DT 7210 AB
3 Link
   1 D 7/86 - 12/86 6169801 83DT 7E266 AC
〃
   1 GB 3/83 - 12/86 6169801 83DT 7E266 AC
4 Spring - retaining
   1 8/82 - 6/83 6123988 83DT 7D367 AB
〃
   1 6/83 - 10/86 6131949 83DT 7D367 AC
5 Lever - transmission gear shift
C3
   1 8/82 - 12/86 6125648 83DT 7302 AB
A4LD
   1 8/82 - 12/86 6138803 85GT 7302 BA
6 Spring - special
   1 8/82 - 12/86 6109194 83DT 7B071 AA
7 Bolt
C3
Market: -CDN, -USA
   1 D 8/82 - 12/86 6109193 83DT 7F031 AA
A4LD
Market: -CDN, -USA
   1 8/82 - 12/86 1629542 83DT 7F031 AB
8 Bush
   2 8/82 - 12/86 6109204 83DT 7W352 AA
9 Circlip
C3
Market: -CDN, -USA
   1 GB 8/82 - 12/86 6109232 E662253 S85
C3
Market: -CDN, -USA
   1 D 8/82 - 12/86 6109232 E662253 S85
A4LD
   1 8/82 - 12/86 1629541 E860364 S76
10 Washer - special
16 × 22.5 × 0.5 mmC3
Market: -CDN, -USA
   1 8/82 - 12/86 6112518 E823127 S76
16.5 × 23.0 × 0.8 mmA4LD
   1 8/82 - 12/86 6141913 E832133 S76
11 Bush
   2 D 8/82 - 2/83 6109195 83DT 7A133 AA
〃
   2 2/83 - 12/86 6132342 83DT 7A133 AB
12 Circlip
   1 8/82 - 12/86 6109233 E662258 S85
13 Housing assy - gear shift
   1 8/82 - 12/86 6131913 83DT 7A307 AD
14 Gasket - housing
   1 8/82 - 12/86 6109206 83DT 7C370 AA
15 Cover
   1 8/82 - 12/86 6123844 83DT 7B244 AA
〃
   1 8/82 - 12/86 6166388 86GT 7B244 AA
16 Housing - selector lever
C3
   1 D 8/82 - 10/84 6133564 83DT 7D394 AC
C3
Market: +CDN, +USA
   1 D 6/84 - 10/84 6169803 83DT 7D394 AD
Market: -CDN, -USA
   1 D 10/84 - 12/86 6169804 85GT 7D394 BC
〃
   1 GB 10/84 - 12/86 6169804 85GT 7D394 BC
16A Washer - retaining
   2 8/82 - 12/86 1625105 E864301 S
17 Nut - expansion
M6C3
Market: -CDN, -USA
   4 8/82 - 12/86 1591504 E826056 S100
M6A4LD
   4 8/82 - 12/86 1625093 E826158 S72
M6C3
Version: XR4IMarket: +CDN, +USA
   4 D 6/84 - 12/88 1625093 E826158 S72
18 Screw - cross recess
M6 × 25 mmC3
   4 8/82 - 12/86 6109231 E603773 S76
M6 × 25 mmA4LD
   4 8/82 - 12/86 1472059
19 Bulb
12 VOLT / 2 WATT
   1 8/82 - 12/86 1640966 86GB 13799 AA
20 Holder assy - bulb
   1 GB 8/82 - 1/84 1619156 83BB 15A811 BC
C3
   1 GB 1/84 - 8/84 6159275 85BB 15A811 AA
C3
   1 D 8/82 - 8/84 6139179 83BB 15A811 BD
A4LDC3
   1 8/82 - 5/85 6159275 85BB 15A811 AA
A4LD
   1 5/85 - 12/86 6159275 85BB 15A811 AA
21 Housing assy - selector dial
C3
Market: -CDN, -USA
   1 D 8/82 - 10/84 1632928 83BB 7D394 AE
C3
Market: -CDN, -USA
   1 GB 8/82 - 10/84 6186681 83BB 7D394 AF
A4LD
Market: -CDN, -USA
   1 GB 8/82 - 11/85 6145859 84BB 7D394 AB
A4LD
   1 GB 11/85 - 12/86 6157335 84BB 7D394 AC
A4LD
   1 D 8/82 - 6/85 6145859 84BB 7D394 AB
A4LD
   1 D 6/85 - 12/86 6157335 84BB 7D394 AC
C3
Version: XR4IMarket: +CDN, +USA
   1 D 6/84 - 12/88 6186681 83BB 7D394 AF
22 Knob - gear change lever
C3
   1 8/82 - 12/86 6109203 83DT 7K327 AA
A4LD
   1 8/82 - 12/86 6141309 85GT 7217 BA
23 Rod and end assy - gear change
C3
Market: -CDN, -USA
   1 8/82 - 12/86 6109196 83DT 7A186 AA
A4LD
   1 8/82 - 12/86 6145495 85GT 7A186 AB
〃
   1 8/82 - 12/86 1638505 86GT 7A186 AA
C3
Version: XR4IMarket: +CDN, +USA
   1 D 6/84 - 12/88 1623515 E5RD 7A186 BA
24 Rod - gear change - less end
C3
Market: -CDN, -USA
   1 8/82 - 12/86 6109197 83DT 7A187 AA
A4LD
   1 8/82 - 12/86 6160733 87GT 7A187 AE
A4LD
   1 8/82 - 12/86 6160732
25 End - gear shift rod
C3
   1 8/82 - 12/86 6006523 72GB 7L182 AA
A4LD
   1 8/82 - 12/86 6159371 86GT 7R322 AA
26 Locknut - gear change rod end
M10C3
   1 8/82 - 12/86 1541699 E820111 S72
Nut - hex.
M10A4LD
   1 8/82 - 12/86 1470596 E820012 S72
27 Bush - gear change rod
   2 8/82 - 12/86 6030687 75DT 7A440 AA
28 Clip
C3
   2 8/82 - 12/86 6006567 E864118 S76
A4LD
   2 D 8/82 - 12/86 6141804
A4LD
   2 8/82 - 12/86 6177341 E860349 S228
