Ford Fiesta MkI/MkII (1976-1989) - Steering Gear And Linkage

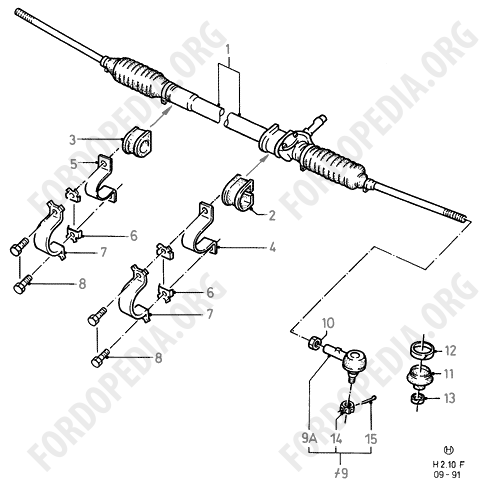

Ford Fiesta MkI/MkII (1976-1989) – Steering Gear And Linkage
# Part name   Qty Prod Prod date FINIS Part No.
1 Gear - rack and pinion steering
RHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 GB 5/76 - 8/83 6114171 77FB 3503 BH
REMANUFACTUREDRHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 GB 5/76 - 8/83 5019132 R77FB 3503 BH
RHD 2WD
Version: SUPER S
   1 GB 6/80 - 8/81 6087988 77FB 3503 DA
RHD 2WD
Version: XR2
   1 GB 10/81 - 8/83 1610519 V82FB 3503 BA
REMANUFACTUREDRHD 2WD
Version: SUPER SPORT
   1 GB 6/80 - 8/81 5019157 RV82FB3503BA
REMANUFACTUREDRHD 2WD
Version: XR2
   1 GB 10/81 - 8/83 5019157 RV82FB3503BA
RHD 2WD
Engine: BL, HL14, HL13
   1 GB 8/83 - 11/86 1647934 87FB 3503 BA
RHD 2WD
Version: XR2Engine: HL16
   1 GB 2/84 - 12/88 6173345 87FB 3503 DA
REMANUFACTUREDRHD 2WD
Version: XR2Engine: HL16
   1 GB 2/84 - 12/88 5019138 R87FB 3503 DA
RHD 2WD
Engine: D16
   1 GB 5/76 - 11/86 1627421 84FB 3503 CC
RHD 2WD
Engine: HL13, HL14, D16, BL
   1 GB 11/86 - 12/88 1647934 87FB 3503 BA
REMANUFACTUREDRHD 2WD
Engine: HL13, HL14, D16, BL
   1 GB 11/86 - 12/88 5019139 R87FB 3503 BA
LHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 D 5/76 - 8/83 1610378 77FB 3503A1 J
REMANUFACTUREDLHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 D 5/76 - 8/83 5019133 R77FB 3503A1 J
LHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 D 5/76 - 8/83 1610379 77FB 3503A2 H
LHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 E 5/76 - 8/83 1610419
LHD 2WD
Version: EXCEPT SUPER S, EXCEPT XR2
   1 E 5/76 - 8/83 1610418
LHD 2WD
Version: SUPER S
   1 D/E 5/76 - 8/83 6087987 77FB 3503 CA
LHD 2WD
Version: XR2
   1 D/E 10/81 - 8/83 1610518 V82FB 3503 AA
REMANUFACTUREDLHD 2WD
Version: XR2
   1 D 10/81 - 8/83 5019158 RV82FB3503AA
LHD 2WD
Engine: BL, HL14, HL13
   1 D 8/83 - 12/88 1647932 87FB 3503A1 A
LHD 2WD
Engine: BL, HL14, HL13
   1 D/E 8/83 - 12/88 1647933 87FB 3503A2 A
REMANUFACTUREDLHD 2WD
Engine: HL13, BL, D16, HL14
   1 D/E 8/83 - 12/88 5019841 R87FB 3503A2 A
LHD 2WD
Version: XR2Engine: HL16
   1 D/E 2/84 - 12/88 1647935 87FB 3503 CA
REMANUFACTUREDLHD 2WD
Version: XR2Engine: HL16
   1 D 2/84 - 12/88 5019141 R87FB 3503 CA
LHD 2WD
Engine: D16
   1 E 5/76 - 12/88 6132621 84FB 3503A1 C
LHD 2WD
Engine: D16
   1 D 5/76 - 12/88 1647932 87FB 3503A1 A
LHD 2WD
Engine: D16
   1 D/E 5/76 - 12/88 1647933 87FB 3503A2 A
2 Insulator - rubber
   1 5/76 - 8/83 1420582 3024E 3K573 A
3 〃
   1 5/76 - 8/83 6034489 77FB 3K573 BA
4 Clamp
   1 E 5/76 - 8/83 6042405 77FB 3K574 BB
〃
   1 D/GB 5/76 - 8/83 6092209 81AB 3K574 AA
5 〃
   1 5/76 - 8/83 6092210 81AB 3K575 AA
6 Plate - locking
   4 GB 5/76 - 8/79 1529337
〃
   4 GB 8/79 - 10/80 6077135 E832074 S71
〃
   4 GB 10/80 - 8/83 6092306 E832085 S71
〃
   4 E 5/76 - 8/83 1604704 E832085 S72
〃
   4 D 5/76 - 5/79 1529337
〃
   4 D 5/79 - 10/80 6077135 E832074 S71
〃
   4 D 10/80 - 12/88 1604704 E832085 S72
7 〃
   2 8/83 - 12/88 6121170 E832087 S71
8 Bolt - hex.head
M10 X 20MM
   4 E/GB 5/76 - 8/79 1468086 E602207 S72
M10 X 25MM
   4 E/GB 8/79 - 8/83 1451250
M10 X 20MM
   4 D 5/76 - 5/79 1468086 E602207 S72
M10 X 25MM
   4 D 5/79 - 8/83 1451250
M10 X 20MM
   4 8/83 - 12/88 1468086 E602207 S72
9 Kit - steering gear tie rod repair
   2 5/76 - 12/88 5021410 880X 3270 AA
9A End - spindle rod connecting
   2 5/76 - 12/88 6128814 84AB 3289 AA
10 Nut - locking
   2 GB 5/76 - 8/83 1582997 33943 S80
〃
   2 E 5/76 - 8/83 3415236 33943 S8
〃
   2 E/GB 8/83 - 12/88 3415236 33943 S8
〃
   2 D 5/76 - 12/88 1582997 33943 S80
11 Seal - dust
FOR 69AB 3289 AA
   2 D/GB 5/76 - 8/83 1443768 69AB 3332 AA
FOR 77FB 3289 AA
   2 E 5/76 - 8/83 1467857 69ZB 3332 AA
〃
   2 8/83 - 12/88 1443768 69AB 3332 AA
12 Retainer - dust seal
   2 5/76 - 12/88 1443794 E860000 S100
13 Ring - retaining
   2 5/76 - 12/88 1571188 E860066 S100
〃
   2 5/76 - 12/88 1443795 E860002 S
14 Nut - castle
M10 X 1
   2 5/76 - 12/88 1443796 E922000 S71
15 Pin - split
2 X 22MM
   2 5/76 - 12/88 0209935 E840001 S71
