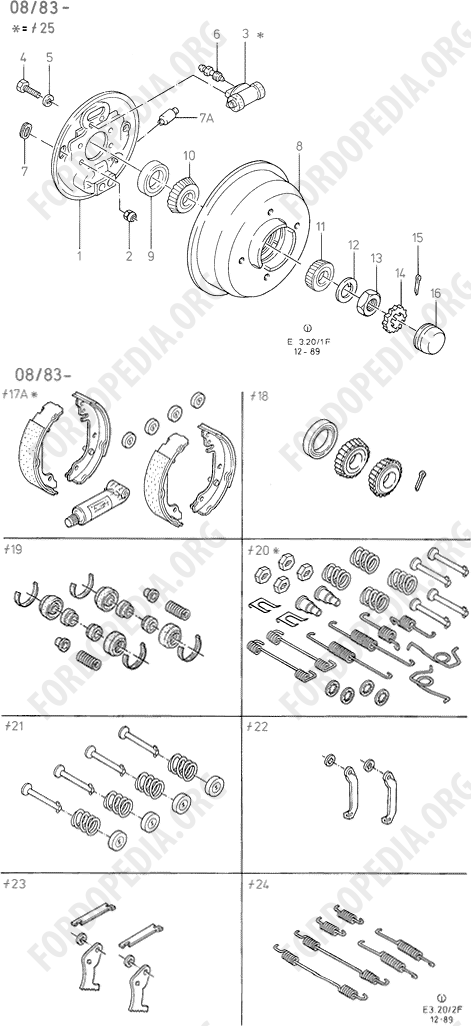

Ford Fiesta MkI/MkII (1976-1989) - Rear Brakes
Ford Fiesta MkI/MkII (1976-1989) – Rear Brakes
# Part name   Qty Prod Prod date FINIS Part No.
1 Plate assy - brake back
 RH 1 8/83 - 12/88 1648632 84FB 2211 AE
〃
 LH 1 8/83 - 12/88 1648633 84FB 2212 AE
2 Nut - hex. - self - locking
M8
   8 E/GB 8/83 - 12/88 1529624 E620433 S72FC
M8
   8 D 8/83 - 12/88 1629271 E820121 S72
3 Cylinder assy - wheel
⌀17.5MM
Version: EXCEPT XR2, EXCEPT XR2Engine: BL, HL
   2 E 8/83 - 11/84 1619138 84FB 2261 BB
⌀17.5MM
Version: EXCEPT XR2, EXCEPT XR2Engine: HL, BL
   2 E/GB 8/83 - 12/88 1630360 84FB 2261 BC
⌀17.5MM
Version: EXCEPT XR2, EXCEPT XR2Engine: HL, BL
   2 D 8/83 - 12/88 1630360 84FB 2261 BC
⌀20.6MM
Version: XR2Engine: HL
   2 2/84 - 12/88 1625132 V84FB 2261 BA
⌀15MM
Engine: D16
   2 8/83 - 12/88 1630359 84FB 2261 AC
4 Bolt - hex.head
M6 X 10MM
   4 8/83 - 12/88 1473188 E602163 S72
5 Lockwasher
   4 8/83 - 12/88 1468209 7S71Y62900HC1ER S
6 Screw - bleed
   2 8/83 - 12/88 1486865 71EB 2208 BA
7 Plug - inspection opening
   2 8/83 - 12/88 1542448 72VB 2092 AA
7A Stop - park brake operating lever
   2 8/83 - 12/88 6122942 84FB 2L625 AA
8 Drum - brake
Version: EXCEPT XR2
   2 8/83 - 12/88 6046462 77FB 1113 BC
Version: XR2
   2 2/84 - 12/88 6157680 84FB 1113 AA
9 Seal assy - oil
   2 8/83 - 12/88 1572045 68AB 1190 AA
10 Bearing assy - roller
INNER
   2 8/83 - 12/88 1565443 3024E 1200 A
11
OUTER
   2 8/83 - 12/88 1492160 72GB 1215 AA
OUTER
   2 E/GB 8/83 - 12/88 1516159 3024E 1215A1
12 Washer - retaining
   2 8/83 - 12/88 1579534 1579534
13 Nut - hex.
M16 X 1.5MM
   2 8/83 - 12/88 1503879 E820030 S72
14 Retainer - nut
   2 8/83 - 12/88 6040296 E890227 S
15 Pin - split
   2 8/83 - 12/88 1490947 E642384 S71
16 Dust cap
   2 8/83 - 12/88 1583435 81AB 1131 AA
17 Kit - brake shoe
ASBESTOS FREEMOTORCRAFT
   1 8/83 - 12/88 5020562 88FX 2200 BA
ASBESTOS FREEMOTORCRAFT
   1 8/83 - 12/88 5021305 88FX 2200 DA
17A
STANDARD TYPEASBESTOS BASED
Version: EXCEPT XR2Market: -S
   1 GB 8/83 - 11/87 1619135 84FB 2200 AC
STANDARD TYPEASBESTOS BASED
Version: EXCEPT XR2Market: -S
   1 E 8/83 - 12/88 6177227 84FB 2200 AD
ASBESTOS FREESTANDARD TYPE
Version: EXCEPT XR2Market: +S
   1 D 8/83 - 12/88 6177228 84FB 2200 BD
ASBESTOS FREESTANDARD TYPE
Version: XR2
   1 GB 2/84 - 12/88 1648631 V84FB 2200 AB
ASBESTOS FREESTANDARD TYPE
Version: XR2
   1 D/E 2/84 - 12/88 1648631 V84FB 2200 AB
18 Kit - wheel bearing repair
   2 8/83 - 12/88 5007027 A800X 1K028 AA
19 Kit - wheel brake cylinder sealing
⌀17.5MM
Version: EXCEPT XR2, EXCEPT XR2Engine: HL, BL
   1 8/83 - 12/88 6148656 84FB 2128 BC
⌀20.6MM
Version: XR2Engine: HL
   1 D/E 2/84 - 11/85 1640144 V84FB 2128 BB
⌀20.6MM
Version: XR2Engine: HL
   1 GB 2/84 - 12/88 1640144 V84FB 2128 BB
⌀15MM
Engine: D16
   1 8/83 - 12/88 6148655 84FB 2128 AC
20 Kit - fixing parts
MOTORCRAFT
   1 8/83 - 12/88 5018537 87FX 2A094 BA
MOTORCRAFT
   1 8/83 - 12/88 5018537 87FX 2A094 BA
21
STANDARD TYPE
   1 8/83 - 12/88 6104202 83BB 2A094 AA
22
STANDARD TYPE
   1 8/83 - 11/83 6136005 84FB 2A753 AA
STANDARD TYPE
   1 11/83 - 12/88 6138790 84FB 2A753 AB
23
STANDARD TYPE
   1 8/83 - 12/88 6177237 84FB 2K286 AB
24
STANDARD TYPE
   1 8/83 - 12/88 6133623 84FB 2A225 AB
25 Kit - brake repair
Version: EXCEPT XR2, EXCEPT XR2Engine: HL, BLMarket: +F, +F
   1 GB 8/83 - 12/88 5020980 88FX 2A010 CA
Engine: D16Market: +F
   1 GB 8/83 - 12/88 5020981 88FX 2A010 DA
Version: XR2Engine: HLMarket: +F
   1 GB 8/83 - 12/88 5020982 88FX 2A010 EA
