Ford Transit MkIII (1985-1991)

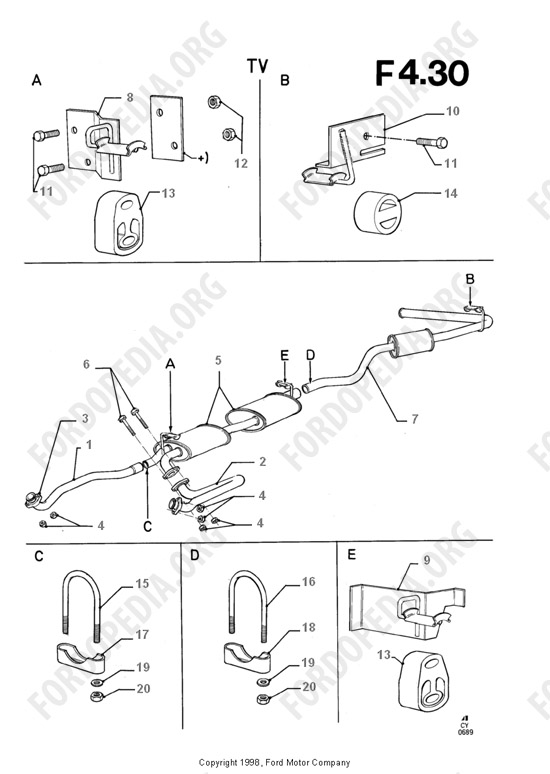

F4.30

2200% completed

parts added: 22
parts total: 1

#	Part name		Qty	Prod	Prod date	FINIS	Part No.
1	Pipe - exhaust - front	RH	1	GB	4/89 - 8/91	6190546	89VB 5246 AA
2	〃	LH	1	GB	4/89 - 8/91	6190545	89VB 5245 AA
3	Flange - exhaust pipe		1	GB	4/89 - 8/91	6177693	88GB 5269 DA
4	Nut - hex.			GB	-	6503553
5	Muffler and pipe assy - front		1	GB	4/89 - 8/91	6190543
6	Bolt - hex.head M10 × 55 mm		2	GB	4/89 - 8/91	1613366	E601316 S200
7	Muffler and pipe assy - rear		1	GB	4/89 - 8/91	6190544	89VB 5K214 AA
8	Support - muffler		1	GB	4/89 - 8/91	1653187	88VB 5A204 AC
9	ALL CHASSIS CABS		1	GB	4/89 - 8/91	6190542	89VB 5A204 CA
9			1	GB	4/89 - 8/91	6200420	89VB 5A204 DA
10	〃		1	GB	4/89 - 8/91	6184801	88VB 5A204 CA
11	Screw M8 × 20 mm		3	GB	4/89 - 8/91	0241589	E602187 S72
12	Nut - hex. M8		2	GB	4/89 - 8/91	1549071	E620453 S72
13	Ring - rubber		2	GB	4/89 - 8/91	6120254	81AB 5A262 AC
14	〃		1	GB	4/89 - 8/91	1591419	78GB 5281 AA
15	U - bolt		1	D	4/89 - 8/91	1478314	71EB 5A239 BA
15	〃		1	D	4/89 - 8/91	1478314	71EB 5A239 BA
16	〃		1	GB	4/89 - 8/91	6110865	83VB 5A239 AA
17	Clamp		1	GB	4/89 - 8/91	6151637	86VB 5270 BA
18	〃		1	GB	4/89 - 8/91	6105834	83VB 5270 AA
19	Washer - flat		4	GB	4/89 - 8/91	1436268	E630031 S71
20	Nut - hex.		4	GB	4/89 - 8/91	1536467
