Ford Sierra MkI (1982-1986)

H2.20

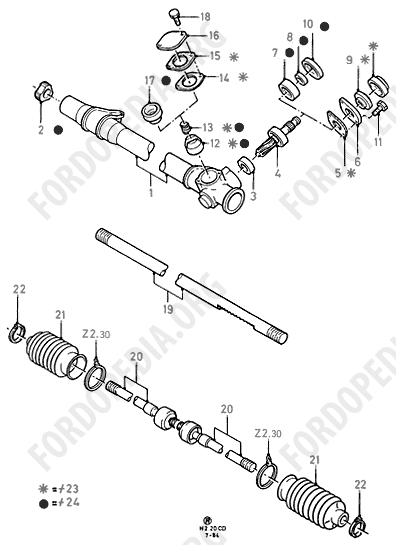

Components - Steering Rack And Pinion

100% completed
parts added: 57
parts total: 57
Ford Sierra MkI (1982-1986) - Components - Steering Rack And Pinion
Ford Sierra MkI (1982-1986) – Components - Steering Rack And Pinion
# Part name   Qty Prod Prod date FINIS Part No.
2 Bearing assy - steering gear rack
FOR 83BB 3503 BERHD
   1 GB 8/82 - 12/86 1568682 69AB 3K723C2 A
FOR 85BB 3503 BARHD
   1 GB 8/82 - 12/86 1610371 83BB 3K723 AA
FOR 85BB 3503 AELHD
   1 D 8/82 - 12/86 1610371 83BB 3K723 AA
FOR 85BB 3503 AF)LHD
   1 D 8/82 - 12/86 1610371 83BB 3K723 AA
FOR 85BB 3503 AALHD
   1 D 8/82 - 12/86 1610371 83BB 3K723 AA
3 Bearing assy - steering gear pinion
FOR 83BB 3503 BERHD
   1 GB 8/82 - 12/86 1610358 83BB 3L545 AA
FOR 85BB 3503 AF)LHD
   1 D 8/82 - 12/86 6072804 81AB 3L545A1 A
FOR 85BB 3503 AALHD
   1 D 8/82 - 12/86 6072804 81AB 3L545A1 A
4 Pinion and bearing - steering gear
FOR 83BB 3503 BERHD
   1 GB 8/82 - 12/86 6103359 83BB 3L528 CA
FOR 85BB 3503 BARHD
   1 GB 8/82 - 12/86 6143881 85GB 3L528 BA
FOR 85BB 3503 BARHD
   1 GB 8/82 - 12/86 6163239 85GB 3L528 BB
FOR 85BB 3503 AALHD
   1 D 8/82 - 12/86 1625129 85GB 3L528 AA
FOR 85BB 3503 AALHD
   1 D 8/82 - 12/86 6163238 85GB 3L528 AB
5 Gasket
LHD
   1 8/82 - 7/84 1572095 73BB 3581A1 A
7 Cover
RHD
   1 GB 8/82 - 12/86 1613449 83BB 3568A2 A
RHD
   1 GB 8/82 - 12/86 1619073 83BB 3568A1 A
LHD
   1 D 7/84 - 12/86 1613449 83BB 3568A2 A
LHD
   1 D 8/82 - 12/86 1619073 83BB 3568A1 A
8 Seal
RHD
   1 GB 8/82 - 12/86 1610367 83BB 3K664 AA
RHD
   1 GB 8/82 - 12/86 1613459 83BB 3K664A1 A
LHD
   1 D 8/82 - 12/86 1613459 83BB 3K664A1 A
9
LHD
   1 D 8/82 - 12/86 6047903 77FB 3K664A2 B
LHD
   1 D 8/82 - 12/86 6047903 77FB 3K664A2 B
10 Cover - steering gear pinion
RHD
   1 GB 8/82 - 12/86 6127734 83BB 3589A1 A
LHD
   1 D 7/84 - 12/86 6127734 83BB 3589A1 A
11 Screw - socket head cap
M8 × 20 mmLHD
   2 8/82 - 7/84 1619094 E804061 S72M
12 Bearing - steering gear rack adjust
FOR 83BB 3503 BERHD
   1 GB 8/82 - 12/86 1568671 68AB 3K653B2 B
FOR 85BB 3503 BARHD
   1 GB 8/82 - 12/86 6135019 81AB 3K653A1 A
FOR 85BB 3503 AELHD
   1 D 8/82 - 12/86 6135019 81AB 3K653A1 A
FOR 85BB 3503 AF)LHD
   1 D 8/82 - 10/83 6135019 81AB 3K653A1 A
FOR 85BB 3503 AF)LHD
   1 D 10/82 - 10/83 6135019 81AB 3K653A1 A
FOR 85BB 3503 AF)LHD
   1 D 10/83 - 12/86 6043356
FOR 85BB 3503 AALHD
   1 D 8/82 - 12/86 6135019 81AB 3K653A1 A
13 Spring
FOR 83BB 3503 BERHD
   1 GB 8/82 - 12/86 6042908 77FB 3K654 AA
FOR 85BB 3503 BARHD
   1 GB 8/82 - 12/86 1568348 71BB 3K654B1 A
FOR 85BB 3503 AELHD
   1 D 8/82 - 12/86 1568348 71BB 3K654B1 A
FOR 85BB 3503 AF)LHD
   1 D 8/82 - 12/86 1568348 71BB 3K654B1 A
FOR 85BB 3503 AALHD
   1 D 8/82 - 7/85 1568348 71BB 3K654B1 A
FOR 85BB 3503 AALHD
   1 D 7/85 - 12/86 1637205 85BB 3K654A1 A
15 Gasket
LHD
   1 8/82 - 7/84 6047890 77FB 3581A1 A
17 Cover
   1 8/82 - 12/86 1619198 83BB 3N572B2 B
18 Bolt - hex.head
M6 × 16 mmLHD
   1 8/82 - 7/84 1472061 E602166 S72
20 Rod assy - spindle connecting
Market: -CDN, -USA
   2 D 8/82 - 12/86 6131083 83BB 3L519 EA
Market: -CDN, -USA
   2 GB 8/82 - 12/86 6185336 87BB 3L519 EA
Market: +CDN, +USA
   2 D 6/84 - 12/88 6131083 83BB 3L519 EA
21 Seal - dust
FOR 85BB 3503 C2ARHD
   2 GB 8/82 - 12/86 1610365 83BB 3K661 AA
FOR 85BB 3503 JARHD
   2 GB 8/82 - 12/86 1619061 83BB 3K661 BD
FOR 85BB 3503 JALHD
   2 D 8/82 - 12/86 1619061 83BB 3K661 BD
22 Ring - retaining
O 12.3-14.1MM
   2 8/82 - 12/86 6060854 E863067 S71
23 Kit - steering gear repair
FOR 85BB 3503 AELHD
   1 D 8/82 - 12/86 6109464 81AB 3L566 AA
FOR 85BB 3503 AF)LHD
   1 D 8/82 - 12/86 6109464 81AB 3L566 AA
24
FOR 83BB 3503 BERHD
   1 GB 8/82 - 7/85 6144924 84AB 3L566 AA
FOR 83BB 3503 BERHD
   1 GB 7/85 - 12/86 6156169 85BB 3L566 AA
FOR 85BB 3503 BARHD
   1 GB 8/82 - 7/85 6144924 84AB 3L566 AA
FOR 85BB 3503 BARHD
   1 GB 7/85 - 12/86 6156169 85BB 3L566 AA
FOR 85BB 3503 AALHD
   1 D 8/82 - 7/85 6144924 84AB 3L566 AA
FOR 85BB 3503 AALHD
   1 D 7/85 - 12/86 6156169 85BB 3L566 AA
