Pinto OHC engines - Exhaust Manifold

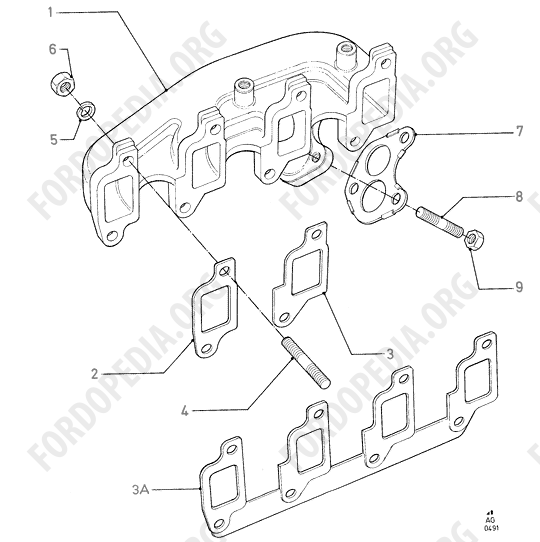

Pinto OHC engines – Exhaust Manifold
# Part name   Qty Prod Prod date FINIS Part No.
1 Manifold assy - exhaust
Engine: TL
   1 8/82 - 2/93 1631497 83HF 9430 AE
2 Gasket - exhaust manifold
Engine: TL
   1 8/82 - 2/91 1472929 71HM 9448 AA
3
Engine: TL
   3 8/82 - 2/91 1472928 71HM 9448 BA
3A
Engine: TL
   1 2/91 - 7/92 6653139 90HM 9448 AA
3B
PORT 2
   1 7/92 - 2/93 6909665 92HM 9448 AA
PORT 3
   1 7/92 - 2/93 6909665 92HM 9448 AA
PORT 4
   1 7/92 - 2/93 6909665 92HM 9448 AA
3C
PORT 1
   1 7/92 - 2/93 6909666 92HM 9448 BA
4 Stud
M8 × 30 mm
Engine: TL
   8 8/82 - 2/93 1451684
5 Nut - hex.
M8
Engine: TL
   8 GB 8/82 - 2/93 1549071 E620453 S72
M8
Engine: TL
   8 D 8/82 - 2/93 1613187 E620433 S72
6 Washer - flat
Engine: TL
   8 8/82 - 2/93 1465430 120907E S8
7 Gasket
Engine: TL
   1 8/82 - 2/93 6134623 81AB 9451 DB
8 Stud
M10 × 26 mm
Engine: TL
   3 8/82 - 2/93 1591844 E804878 S100
M12SIERRA
Engine: LL23EFI
   2 6/84 - 12/88 1623521
9 Locknut
M10
Engine: TL
   AR 8/82 - 2/93 1652467 E822204 S5
